BMeters IWM-TX5

Website

White BMeters IWM-TX5 wM-Bus radio module with barcode label and NFC mark

Description​

The IWM-TX5 is a radio module suitable for the consumption data transmission and applicable to the single jet GSD8-I water meters.

Configuration​

Configuration Guide for IWM-TX5 Water Meter via NFC​

This guide describes the steps to configure a water meter with an IWM-TX5 NFC module using an Android smartphone.


Step 1: Install the Configuration App​

Download the B METERS NFC Config application from the Google Play Store:

https://play.google.com/store/apps/details?id=it.gread.bmeters_appnfc&hl=en

You can scan the QR code below to go directly to the app:

QR Code - B Meters NFC Config


Step 2: Connect to the Meter​

  1. Enable NFC on your Android device.
  2. Open the B METERS NFC Config app.
  3. Hold your smartphone close to the NFC tag on the water meter until the connection is established.

Step 3: Select Device Type​

From the list of available devices, select:

  • IWM-TX5

Step 4: Configure Sensor Parameters​

Adjust the following settings:

  • AMR: Check (enable automatic meter reading)
  • Water meter type: GSD8-I AF DN15
  • Transmit during weekend: Check "Saturday" and "Sunday" and "Send Date and Time"
  • Global encryption: Check (Use of a global key instead of an individual one)

Step 5: Write Configuration to Meter​

  1. Bring your phone close to the NFC tag again.
  2. Tap the Write button.
  3. Wait for the message: Writing Done.

Step 6: Verify Settings​

  1. Tap the Read button.
  2. Check that the configured values match what was written.

Your water meter is now successfully configured.

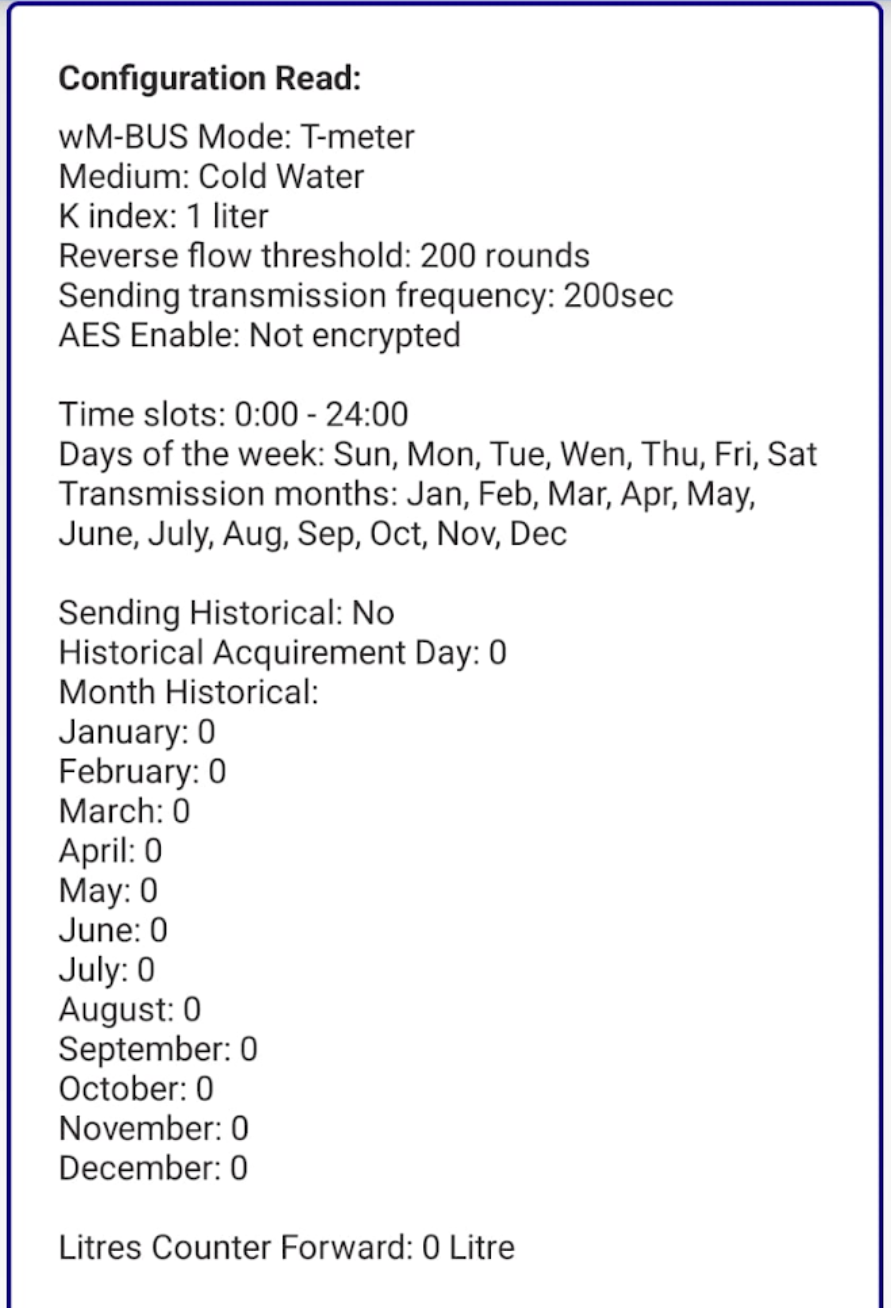

Read data via config

Wireless M-Bus Address Configuration​

Where to Find the Address on the Device​

The address is located in the center below the barcode, after the CE mark, as shown in the image below (8 digits).

IWM-TX5 with the 8-digit wM-Bus address outlined below the barcode after the CE mark


Mapping the wM-Bus Address to CHESTER​

The mapping must be carried out using the CHESTER Terminal, for example with:


Managing and Adding wM-Bus Device Addresses in CHESTER​

Here you can manage the list of wM-Bus addresses (add/remove), adjust scan settings, and review example configurations for typical setups.


Message Encryption and Key Management​

The transmitted messages are encrypted.

The received data must therefore be decrypted, which is done using decryption keys.
To achieve this, there are two options:
