Displaying Variables on HTML Canvas

This widget allows you to create custom visualizations using HTML, CSS, and JavaScript. It’s a flexible option for advanced users who want to design personalized dashboards or interactive data views.

Step-by-Step Instructions

Open Dashboards

In the top navigation bar, click on Data, then select Dashboards. This will open the dashboard management area.

Add a New Widget

Click the Add new Widget button (marked with a + icon).

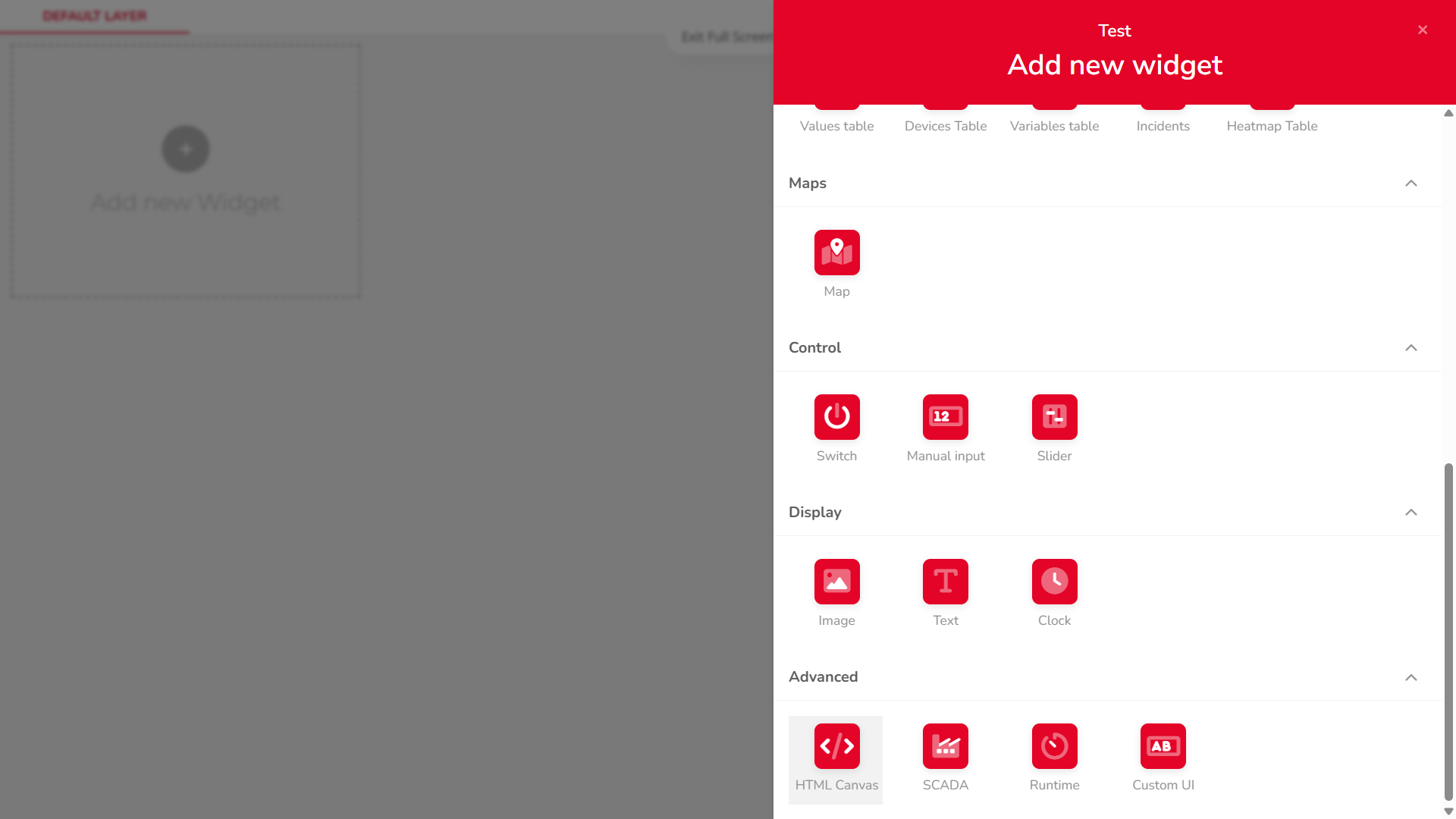

Choose a Widget Type

From the list of available widgets, choose the HTML Canvas.

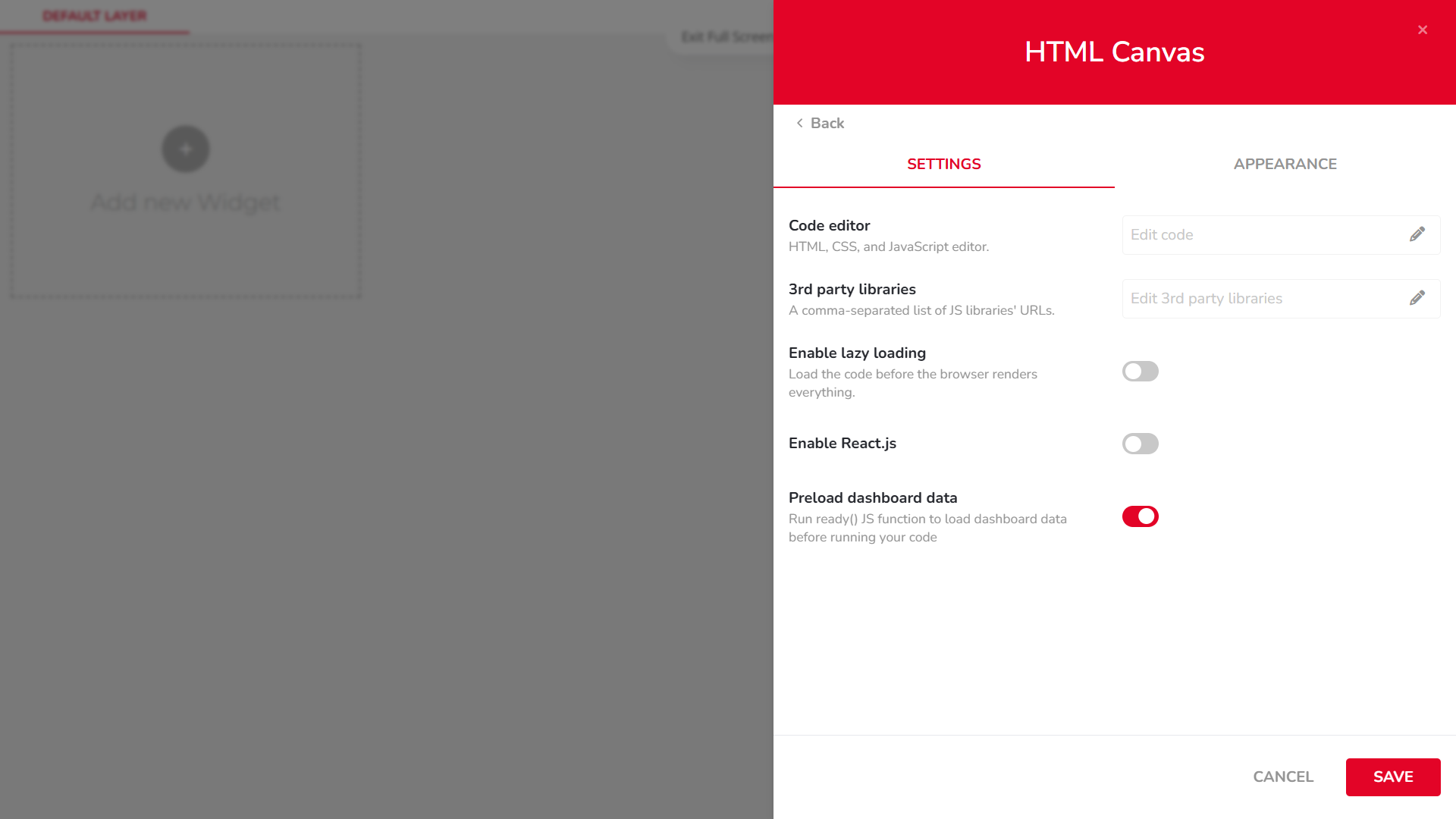

Configure HTML Canvas Settings

In the SETTINGS tab, configure the available options.
This is where you can enable or disable features such as:

Preload dashboard data (recommended: ON)
Enable React.js (optional, for dynamic rendering)
Add third-party libraries (for external JS/CSS resources)

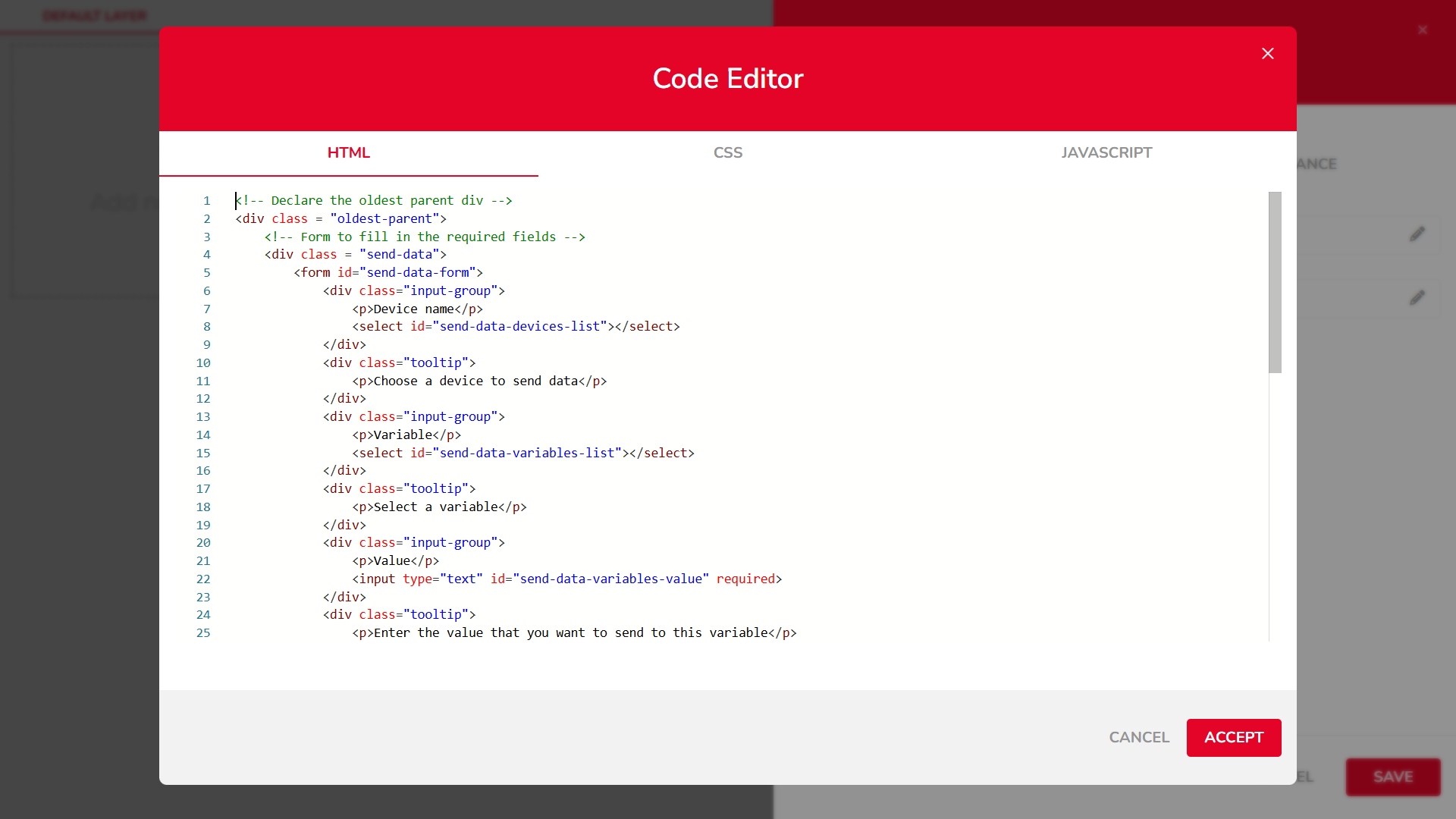

After configuration, click Edit code under Code editor and insert your HTML, CSS, and JavaScript.

Add HTML Code to the Canvas

In the Code Editor, insert your desired layout and logic.

Edit Canvas Appearance

Switch to the APPEARANCE tab to modify the visual style of your widget.
You can set:

Widget name
Option to hide the header

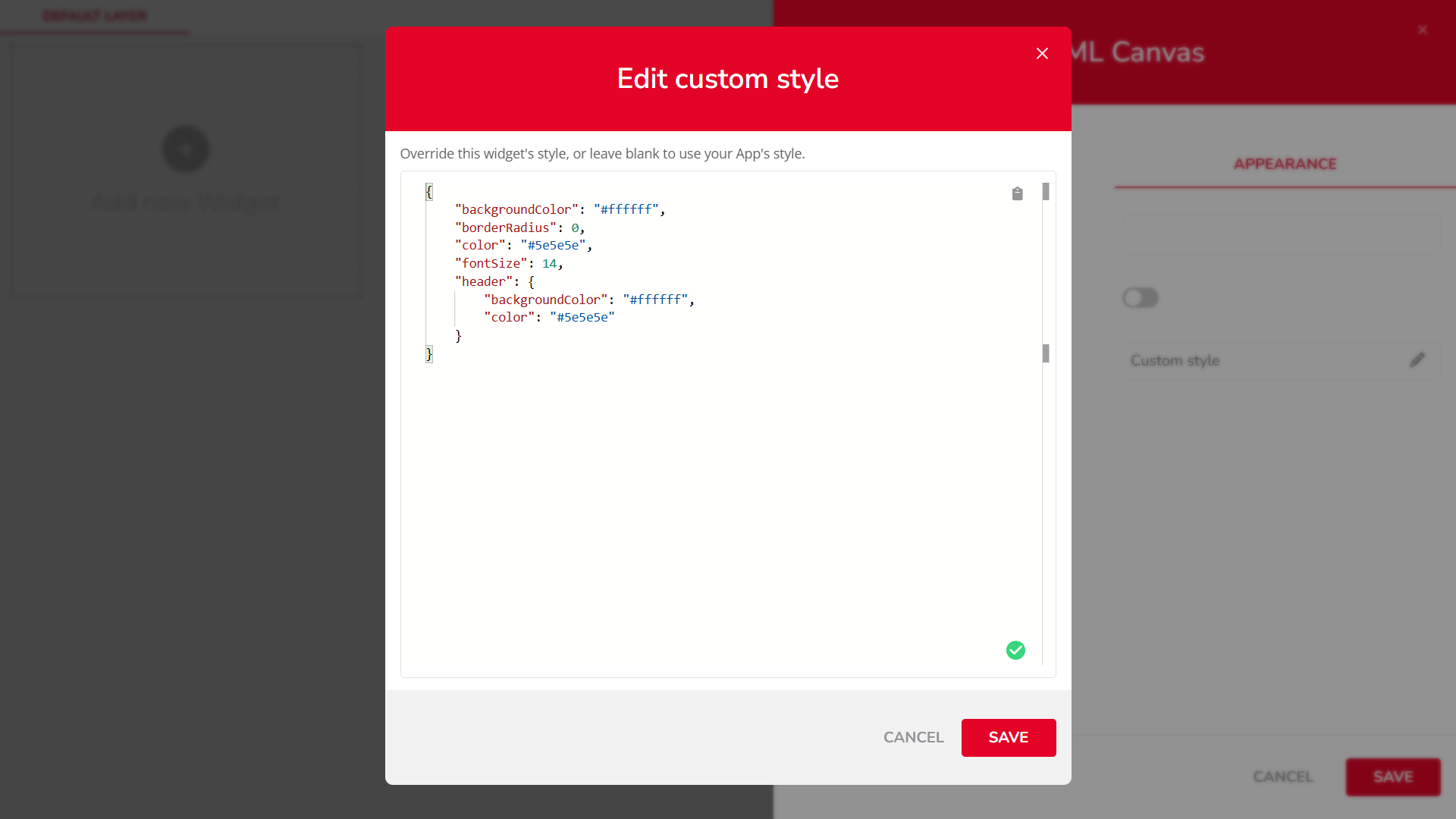

Add a custom style (JSON format)

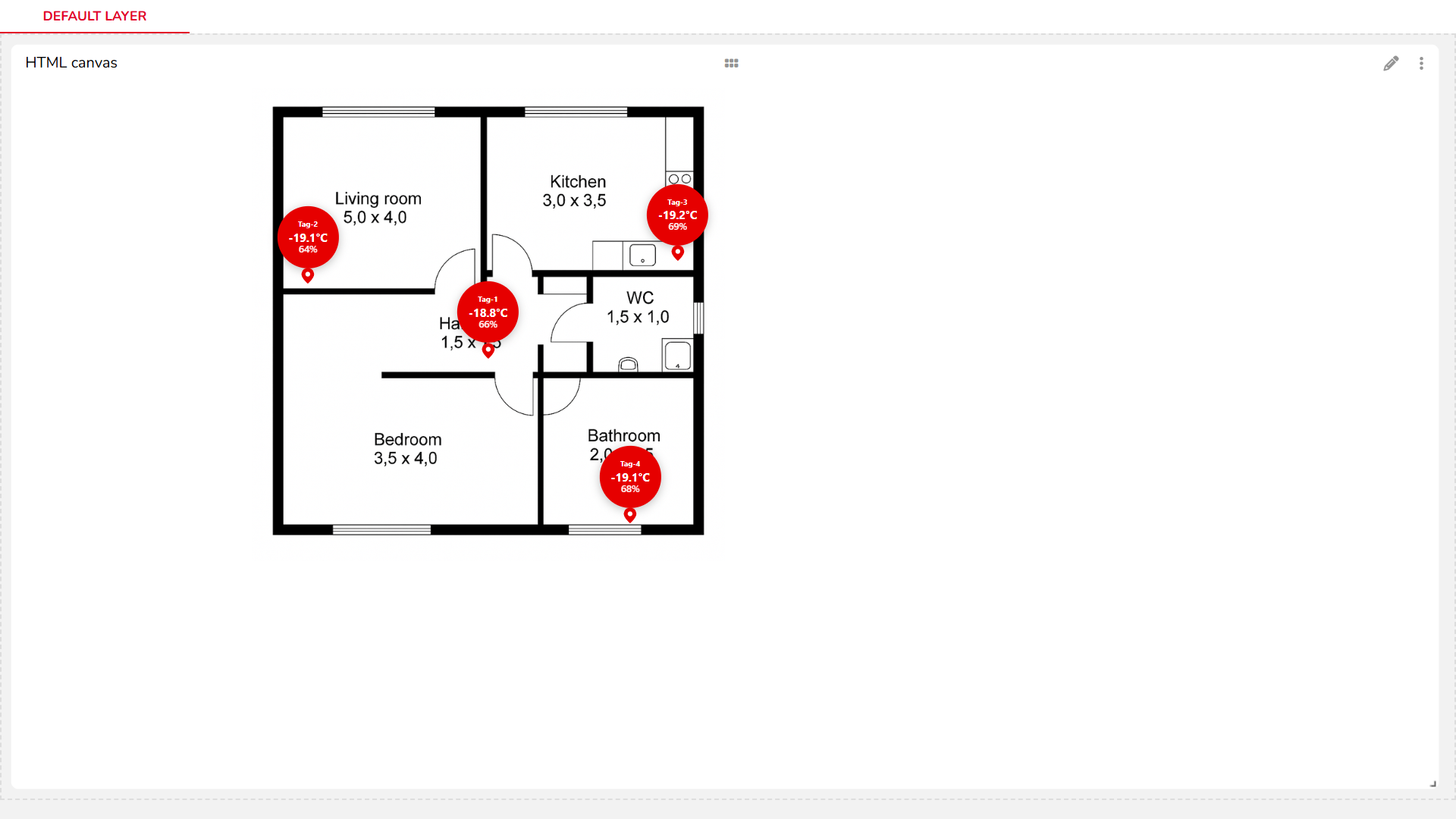

Example of HTML Canvas (Floor Plan)

Before using the HTML code, you must update several parameters inside the CONFIG section of the script.
These define your Ubidots connection, the floor plan image, and the BLE tag positions.

Parameter	Description	Required
`CONFIG.ubidots.token`	Your Ubidots API token (found under API Credentials in Ubidots).	✅
`CONFIG.ubidots.deviceLabel`	The device label that contains your BLE sensor variables.	✅
`CONFIG.floorplanUrl`	Public URL to your PNG/JPG floor plan image. You can host it via Postimages or Imgur.	✅
`CONFIG.pollingMs`	How often to refresh values from Ubidots, in milliseconds. Default: `15000` (15 seconds).	⚙️ Optional
`CONFIG.tags`	Array containing all BLE sensors with their names, indexes, and positions. Each entry represents one sensor pin on the floor plan.	✅
`room`	Display name (e.g., `"Server Room"`).	✅
`idx`	BLE tag index (0–N) — values are read from: `ble_tags.<idx>.temperature.avg` and `ble_tags.<idx>.humidity.avg`.	✅
`x`, `y`	Position in percentages (0–100) relative to the image dimensions.	✅
`loc.anchor`	Locator arrow direction — `"down"` (below), `"top"` (above), or `"diag"` (diagonal).	⚙️ Optional
`loc.dx`, `loc.dy`	Fine offset adjustment for the locator position in pixels.	⚙️ Optional
`loc.angle`	Rotation of the locator in degrees (used with `"diag"`).	⚙️ Optional
`loc.mirror`	Flip the locator horizontally (`true` / `false`).	⚙️ Optional

Example Code – HTML Floor Plan

<div id="floor-wrapper">
  <img id="floorplan" alt="Floor plan" />
  <div id="pins"></div>
</div>

<style>
  #floor-wrapper {
    position: relative;
    width: 100%;
    max-width: 1000px; /* You can change the max width of the canvas */
    margin: 0 auto;
  }
  /* The image scales responsively; coordinates are given in PERCENT (0–100) */
  #floorplan { width: 100%; display: block; }

  .pin-wrapper {
    position: absolute;
    transform: translate(-50%, -50%);
  }

  .pin {
    width: 65px;
    height: 65px;
    border-radius: 50%;
    background: #e60000; /* You may change bubble color */
    color: #fff;
    display: flex;
    flex-direction: column;
    align-items: center;
    justify-content: center;
    text-align: center;
    font-family: system-ui, -apple-system, Segoe UI, Roboto, Helvetica, Arial, sans-serif;
    box-shadow: 0 2px 10px rgba(0,0,0,.25);
    pointer-events: none;
    position: relative;
  }
  .pin .room {
    font-size: 8px;
    font-weight: 700;
    line-height: 1.1;
    margin-bottom: 2px;
    max-width: 56px;
    white-space: nowrap;
    overflow: hidden;
    text-overflow: ellipsis;
  }
  .pin .t { font-size: 12px; font-weight: 700; line-height: 1.2; }
  .pin .h { font-size: 10px; font-weight: 500; line-height: 1.1; opacity: .95; }

  .locator {
    position: absolute;
    width: 20px;
    height: 30px;
    pointer-events: none;
  }

  @media (max-width: 520px) {
    .pin { width: 56px; height: 56px; }
    .pin .room { font-size: 7px; }
    .pin .t { font-size: 10px; }
    .pin .h { font-size: 9px; }
    .locator { width: 16px; height: 24px; }
  }
</style>

<script>
  /* ========= CONFIG (fill these) ========= */
  const CONFIG = {
    ubidots: {
      token:        "PASTE_UBIDOTS_TOKEN",  /* REQUIRED: your Ubidots API token */
      deviceLabel:  "PASTE_DEVICE_LABEL"    /* REQUIRED: your Ubidots device label */
    },

    floorplanUrl:   "PASTE_FLOORPLAN_IMAGE_URL", /* REQUIRED: public URL of your floor plan image (PNG/JPG) */

    pollingMs:      15000,                        /* OPTIONAL: refresh interval in ms */

    /* REQUIRED: Define your BLE tags (coordinates in PERCENT 0–100; data from ble_tags.<idx>.*.avg) */
    tags: [
      { room: "Tag-1", idx: 0, x: 50, y: 30,  loc: { anchor: "down", dx: 0, dy: -5 } },
      { room: "Tag-2", idx: 2, x: 12, y: 20,  loc: { anchor: "down", dx: 0, dy: -5 } },
      { room: "Tag-3", idx: 3, x: 90, y: 17,  loc: { anchor: "down", dx: 0, dy: -5 } },
      { room: "Tag-4", idx: 4, x: 80, y: 52,  loc: { anchor: "down", dx: 0, dy: -5 } }
    ]
  };
  /* ======== END CONFIG ======== */

  const floor = document.getElementById("floorplan");
  const pinsContainer = document.getElementById("pins");
  floor.src = CONFIG.floorplanUrl;

  function markerSVG(hex) {
    if (!hex) hex = "#e60000";
    return '' +
      '<svg viewBox="0 0 24 24" width="100%" height="100%" xmlns="http://www.w3.org/2000/svg" aria-hidden="true">' +
        '<path fill="' + hex + '" d="M12 2c-4.42 0-8 3.58-8 8 0 5.25 8 12 8 12s8-6.75 8-12c0-4.42-3.58-8-8-8z"/>' +
        '<circle cx="12" cy="10" r="3" fill="#ffffff"/>' +
      '</svg>';
  }

  function apiUrl(variableLabel) {
    return 'https://industrial.api.ubidots.com/api/v1.6/devices/' +
      encodeURIComponent(CONFIG.ubidots.deviceLabel) + '/' +
      encodeURIComponent(variableLabel) + '/values?page_size=1';
  }

  async function getLastValue(varLabel) {
    const res = await fetch(apiUrl(varLabel), { headers: { "X-Auth-Token": CONFIG.ubidots.token } });
    if (!res.ok) throw new Error('HTTP ' + res.status);
    const data = await res.json();
    const v = (data && data.results && data.results[0]) ? data.results[0] : null;
    return v ? v.value : null;
  }

  function placeLocator(el, loc) {
    const anchor = (loc && loc.anchor) ? loc.anchor : "down";
    const dx = Number(loc && (loc.dx != null) ? loc.dx : 0);
    const dy = Number(loc && (loc.dy != null) ? loc.dy : 0);
    const angle = Number(loc && (loc.angle != null) ? loc.angle : 0);
    const mirror = !!(loc && loc.mirror);

    el.style.left = ""; el.style.right = ""; el.style.top = ""; el.style.bottom = "";
    const sx = mirror ? -1 : 1;

    if (anchor === "down") {
      el.style.left = "50%";
      el.style.bottom = (-18 + dy) + "px";
      el.style.transform = "translateX(-50%) rotate(0deg) scaleX(" + sx + ")";
    } else if (anchor === "top") {
      el.style.left = "50%";
      el.style.top = (-18 + dy) + "px";
      el.style.transform = "translateX(-50%) rotate(180deg) scaleX(" + sx + ")";
    } else if (anchor === "diag") {
      el.style.right = (-10 + dx) + "px";
      el.style.bottom = (-10 + dy) + "px";
      el.style.transform = "rotate(" + angle + "deg) scaleX(" + sx + ")";
    }
  }

  function ensurePins() {
    pinsContainer.innerHTML = "";
    CONFIG.tags.forEach(function(tag, i) {
      const wrap = document.createElement("div");
      wrap.className = "pin-wrapper";
      wrap.id = "wrap-" + i;

      const pin = document.createElement("div");
      pin.className = "pin";
      pin.id = "pin-" + i;
      pin.innerHTML =
        '<span class="room">' + (tag.room || ('Tag ' + (i + 1))) + '</span>' +
        '<span class="t">--.-°C</span>' +
        '<span class="h">--%</span>';

      const loc = document.createElement("div");
      loc.className = "locator";
      loc.innerHTML = markerSVG();

      pin.appendChild(loc);
      wrap.appendChild(pin);
      pinsContainer.appendChild(wrap);

      placeLocator(loc, tag.loc || {});
    });
    positionPins();
  }

  function positionPins() {
    const rect = floor.getBoundingClientRect();
    CONFIG.tags.forEach(function(tag, i) {
      const wrap = document.getElementById("wrap-" + i);
      if (!wrap) return;

      /* PERCENT COORDINATES: x,y are 0–100 relative to the current rendered image size */
      const px = (tag.x / 100) * rect.width;
      const py = (tag.y / 100) * rect.height;

      wrap.style.left = px + "px";
      wrap.style.top  = py + "px";
    });
  }

  async function refreshData() {
    for (let i = 0; i < CONFIG.tags.length; i++) {
      const tag = CONFIG.tags[i];
      const base = "ble_tags." + tag.idx; /* Always reading BLE by index with .avg */
      const tLabel = base + ".temperature.avg";
      const hLabel = base + ".humidity.avg";

      try {
        const values = await Promise.all([
          getLastValue(tLabel),
          getLastValue(hLabel)
        ]);
        const t = values[0], h = values[1];
        const el = document.getElementById("pin-" + i);
        if (el) {
          el.querySelector(".t").textContent = (t == null ? "--.-°C" : (Number(t).toFixed(1) + "°C"));
          el.querySelector(".h").textContent = (h == null ? "--%"   : (Math.round(h) + "%"));
        }
      } catch (e) {
        console.warn("Fetch error (pin " + i + "):", e);
      }
    }
  }

  ensurePins();
  floor.addEventListener("load", positionPins);
  window.addEventListener("resize", positionPins);
  refreshData();
  setInterval(refreshData, CONFIG.pollingMs);
</script>

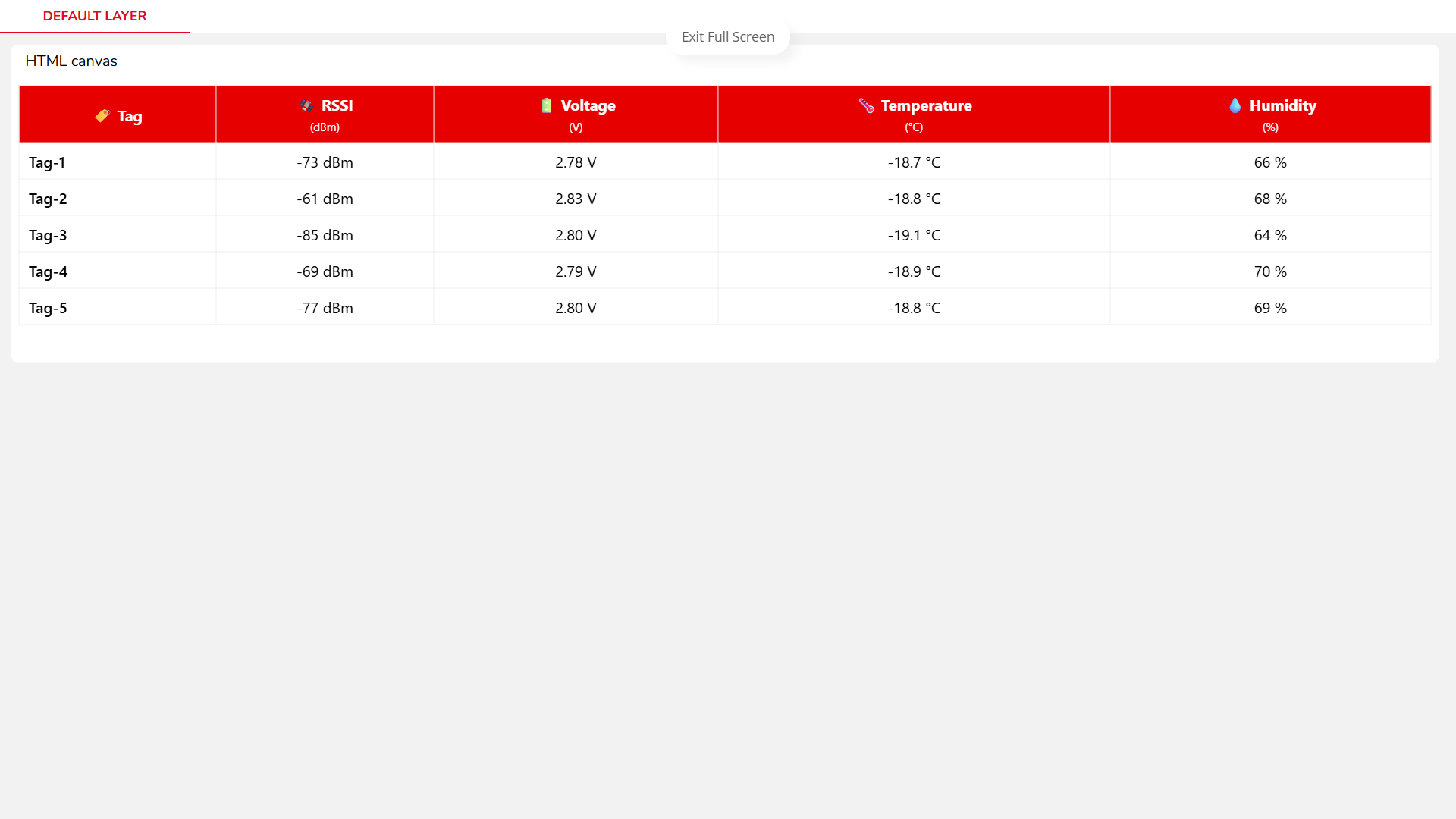

Example of HTML Canvas (Data Table)

Before using the HTML code, you must update several parameters inside the CONFIG section of the script.

Parameter	Description	Required
`CONFIG.ubidots.token`	Your Ubidots API token (found under API Credentials).	✅
`CONFIG.ubidots.deviceLabel`	Device label in Ubidots that contains the BLE variables.	✅
`CONFIG.pollingMs`	Refresh interval in milliseconds. Default: `15000`.	⚙️ Optional
`CONFIG.tags`	Array of rows to display in the table. Each row maps to `ble_tags.<idx>.*`.	✅
`name`	Display name of the tag (table’s first column).	✅
`idx`	BLE tag index (0–N) used to read: `rssi`, `voltage`, `temperature.avg`, `humidity.avg`.	✅

Example Code – HTML Data Table

<!-- ======== HTML TABLE: BLE TAGS STATUS ======== -->
<table id="tags-table" cellspacing="0" cellpadding="8"
  style="width:100%; border-collapse: collapse; text-align:center; font-family: system-ui, sans-serif;">
  <thead>
    <tr style="background:#e60000; color:#fff;">
      <th style="border:1px solid #ddd;">🏷️ Tag</th>
      <th style="border:1px solid #ddd;">🛰️ RSSI<br><span style="font-weight:400;font-size:12px;">(dBm)</span></th>
      <th style="border:1px solid #ddd;">🔋 Voltage<br><span style="font-weight:400;font-size:12px;">(V)</span></th>
      <th style="border:1px solid #ddd;">🌡️ Temperature<br><span style="font-weight:400;font-size:12px;">(°C)</span></th>
      <th style="border:1px solid #ddd;">💧 Humidity<br><span style="font-weight:400;font-size:12px;">(%)</span></th>
    </tr>
  </thead>
  <tbody id="tbody"></tbody>
</table>

<script>
  /* ========= CONFIG (fill these) ========= */
  const CONFIG = {
    ubidots: {
      token:        "PASTE_UBIDOTS_TOKEN",   /* REQUIRED: your Ubidots API token */
      deviceLabel:  "PASTE_DEVICE_LABEL"     /* REQUIRED: your Ubidots device label */
    },
    pollingMs: 15000,                        /* OPTIONAL: refresh interval in ms */
    /* REQUIRED: Define your BLE tags (idx = ble_tags.<idx>.*) */
    tags: [
      { name: "Tag-1", idx: 0 },
      { name: "Tag-2", idx: 1 },
      { name: "Tag-3", idx: 2 },
      { name: "Tag-4", idx: 3 },
      { name: "Tag-5", idx: 4 }
    ]
  };
  /* ======== END CONFIG ======== */

  const tbodyEl = document.getElementById("tbody");

  function apiUrl(variableLabel) {
    return "https://industrial.api.ubidots.com/api/v1.6/devices/"
      + encodeURIComponent(CONFIG.ubidots.deviceLabel)
      + "/"
      + encodeURIComponent(variableLabel)
      + "/values?page_size=1";
  }

  async function getLastValue(varLabel) {
    try {
      const res = await fetch(apiUrl(varLabel), {
        headers: { "X-Auth-Token": CONFIG.ubidots.token }
      });
      if (!res.ok) return null;
      const data = await res.json();
      return (data && data.results && data.results[0])
        ? data.results[0].value
        : null;
    } catch {
      return null;
    }
  }

  function renderTableSkeleton() {
    tbodyEl.innerHTML = "";
    CONFIG.tags.forEach(t => {
      const tr = document.createElement("tr");
      tr.innerHTML =
        '<td style="border:1px solid #eee; text-align:left; padding-left:10px; font-weight:600;">'
        + t.name + "</td>"
        + '<td id="rssi-' + t.idx + '"    style="border:1px solid #eee;">--</td>'
        + '<td id="voltage-' + t.idx + '" style="border:1px solid #eee;">--</td>'
        + '<td id="temp-' + t.idx + '"    style="border:1px solid #eee;">--</td>'
        + '<td id="hum-' + t.idx + '"     style="border:1px solid #eee;">--</td>';
      tbodyEl.appendChild(tr);
    });
  }

  function formatVoltage(v) {
    if (v == null) return "--";
    const num = Number(v);
    if (num >= 1) return num.toFixed(2) + " V";
    return (num * 1000).toFixed(0) + " mV";
  }

  async function refreshOnce() {
    for (const t of CONFIG.tags) {
      // Variable labels:
      //   RSSI:        ble_tags.<idx>.rssi
      //   Voltage:     ble_tags.<idx>.voltage
      //   Temperature: ble_tags.<idx>.temperature.avg
      //   Humidity:    ble_tags.<idx>.humidity.avg
      const rssiLabel = "ble_tags." + t.idx + ".rssi";
      const voltLabel = "ble_tags." + t.idx + ".voltage";
      const tempLabel = "ble_tags." + t.idx + ".temperature.avg";
      const humLabel  = "ble_tags." + t.idx + ".humidity.avg";

      try {
        const [rssi, volt, temp, hum] = await Promise.all([
          getLastValue(rssiLabel),
          getLastValue(voltLabel),
          getLastValue(tempLabel),
          getLastValue(humLabel)
        ]);

        setText("rssi-" + t.idx,    rssi == null ? "--" : Math.round(rssi) + " dBm");
        setText("voltage-" + t.idx, volt == null ? "--" : formatVoltage(volt));
        setText("temp-" + t.idx,    temp == null ? "--" : Number(temp).toFixed(1) + " °C");
        setText("hum-" + t.idx,     hum  == null ? "--" : Math.round(hum) + " %");
      } catch (e) {
        console.warn("Tag " + t.idx + " error:", e);
      }
    }
  }

  function setText(id, text) {
    const el = document.getElementById(id);
    if (el) el.textContent = text;
  }

  renderTableSkeleton();
  refreshOnce();
  setInterval(refreshOnce, CONFIG.pollingMs);
</script>

Displaying Variables on HTML Canvas

Step-by-Step Instructions

Open Dashboards

Add a New Widget

Choose a Widget Type

Configure HTML Canvas Settings

Add HTML Code to the Canvas

Edit Canvas Appearance

Example of HTML Canvas (Floor Plan)

Configure the Floor Plan Widget

Example Code – HTML Floor Plan

Example of HTML Canvas (Data Table)

Configure the Table Widget

Example Code – HTML Data Table

Step-by-Step Instructions​

Open Dashboards​

Add a New Widget​

Choose a Widget Type​

Configure HTML Canvas Settings​

Add HTML Code to the Canvas​

Edit Canvas Appearance​

Example of HTML Canvas (Floor Plan)​

Configure the Floor Plan Widget​

Example Code – HTML Floor Plan​

Example of HTML Canvas (Data Table)​

Configure the Table Widget​

Example Code – HTML Data Table​

Step-by-Step Instructions

Open Dashboards

Add a New Widget

Choose a Widget Type

Configure HTML Canvas Settings

Add HTML Code to the Canvas

Edit Canvas Appearance

Example of HTML Canvas (Floor Plan)

Configure the Floor Plan Widget

Example Code – HTML Floor Plan

Example of HTML Canvas (Data Table)

Configure the Table Widget

Example Code – HTML Data Table
