Configuring User Roles & Hierarchies

This guide explains how to set up a 4-tier permission structure in ThingsBoard. We will configure roles ranging from full system administration to read-only access for end-users.

1. The Role Hierarchy

We will implement the following structure:

1. Tenant Administrator: All permissions (System Owner).
2. Customer Administrator: Full User management (add/delete) & Dashboard editing. Cannot delete Devices.
3. Site Manager: Device control (RPC) & Dashboard viewing. No editing permissions.
4. Dashboard Viewer: Read-only access.

---

2. How to Create a New Role

All roles below (except Tenant Admin) are created using these steps:

1. Login as Tenant Administrator.
2. Navigate to Security > Roles in the left menu.
3. Click the + (Plus) button to add a new role.
4. Name the role (e.g., Customer Administrator).
5. Set Role Type to Generic.
6. In the Permissions section, click Add to define specific rules (see Section 3 below).

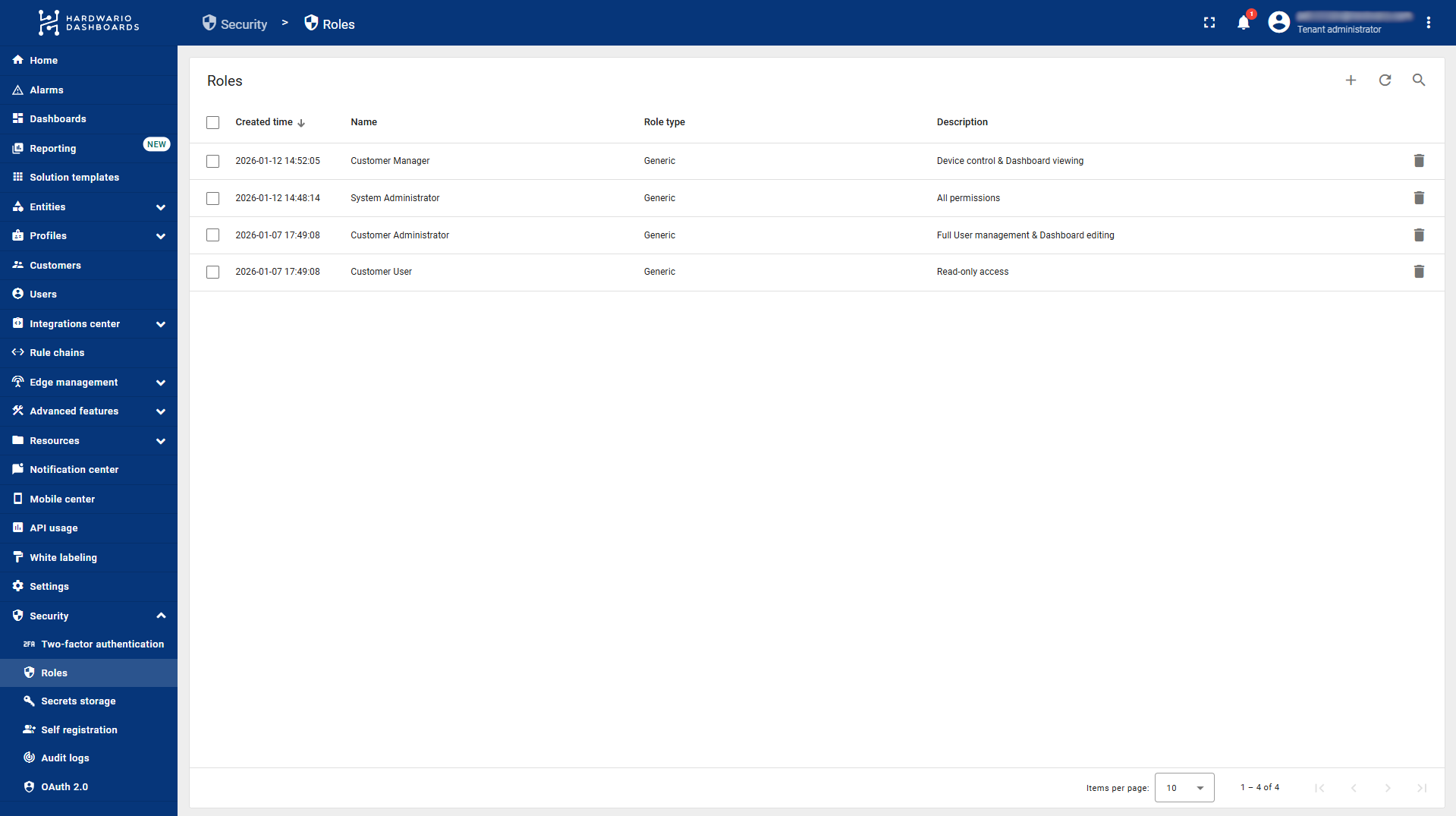

ThingsBoard - User Roles

---

3. Configuration Details

Level 1: Tenant Administrator

Note: This is the default Super Admin role. No configuration needed.

• Permissions: All Permissions.

Level 2: Customer Administrator

Target Audience: Technical Supervisors / School Admins.

• Description: Can edit Dashboards and fully manage Users (create/delete). Cannot delete Devices.
• Permissions Setup:

Resource	Operations	Notes
User	All (Read, Write, Create, Delete)	Can add/remove teachers.
Device	Read, Write, RPC	NO Delete. Safe hardware management.
Dashboard	Read, Write	Can edit layout and widgets.
Asset	Read, Write	Can edit building details.
Alarm	Read, Write	Can acknowledge alarms.

Level 3: Site Manager

Target Audience: Directors / Principals.

• Description: Can view Dashboards and control Devices (RPC/Attributes). No permission to edit layouts.
• Permissions Setup:

Resource	Operations	Notes
Device	Read, Write, RPC	Can change temperature, switch lights.
Dashboard	Read	Read Only. Cannot break the graphs.
User	Read	Can see list of users, but cannot edit.
Alarm	Read, Write	Can acknowledge alarms.

Level 4: Dashboard Viewer

Target Audience: Teachers / General Staff.

• Description: Read-only access to Dashboards and Devices. No control permissions.
• Permissions Setup:

Resource	Operations	Notes
Device	Read	View data only.
Dashboard	Read	View graphs only.
Alarm	Read	View status only.
Asset	Read	View buildings only.

---

4. How to Assign Roles

Once the roles are created, assign them to users within a specific Customer (e.g., "School A").

1. Go to Customers > Click on a specific Customer (e.g., "School A").
2. Click Manage Customer Users (Person icon).
3. Click + (Add User).
4. Fill in the email and activation method.
5. Crucial Step: In the Roles dropdown, select the role you created (e.g., Site Manager).
6. Click Add.

Result: This user will now have the permissions defined in the role, but ONLY for the devices and dashboards belonging to "School A".
