Zenner Minomess
Description

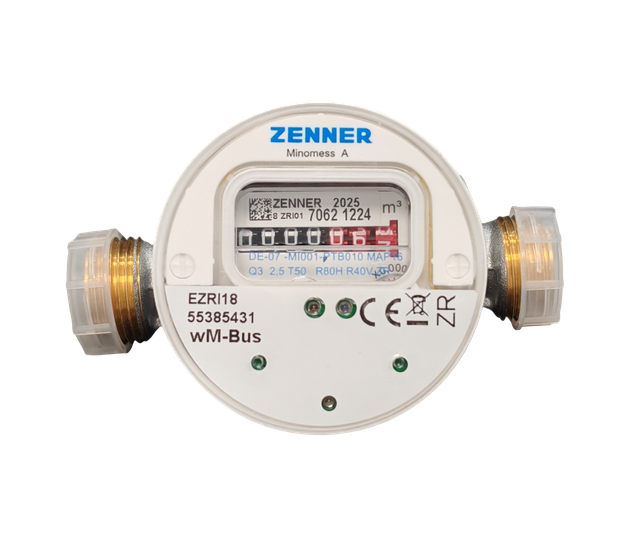

The Minomess water meter is a compact dry-dial meter with a shielded magnetic coupling and a 7-digit roller register. It comes equipped with a wireless M-Bus (wM-Bus) radio module for seamless integration into remote readout systems.
Configuration
The device is delivered pre-configured.
Wireless M-Bus Address Configuration
Where to Find the Address on the Device

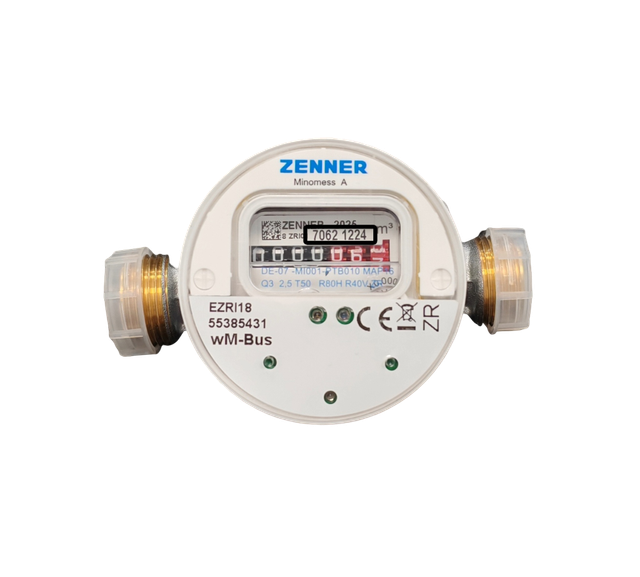

The address is displayed on the device screen, to the left of the unit m³, as shown in the image below (8 digits).
Mapping the wM-Bus Address to Chester
The mapping must be carried out using the Chester terminal, for example with:
Managing and Adding wM-Bus Device Addresses in Chester
Here you can manage the list of wM-Bus addresses (add/remove), adjust scan settings, and review example configurations for typical setups.
- Address List Configuration – manage and edit the list of linked wM-Bus addresses
- Scan Configuration – adjust scan settings for device communication
- Example Configurations – reference templates for typical setups
Message Encryption and Key Management
The transmitted messages are encrypted to optimize energy consumption during data transmission, which extends the overall battery life.
The received data must therefore be decrypted, which is done using decryption keys.
To achieve this, there are two options:
- Hardwario Cloud – tutorial on how to enter and manage decryption keys
- Decryption page – online tool for manual data decryption and analysis
