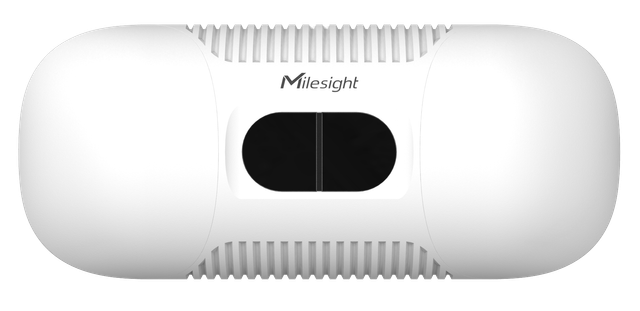

Milesight Sensor VS135
Milesight VS135 is an AI-powered ToF (Time-of-Flight) people counting sensor that delivers 99.8% accurate occupancy detection with full privacy protection. It features bi-directional counting, supports up to 4 custom zones, and offers advanced analytics including dwell time analysis, heat maps, and group counting. With its IP65 rating and multiple connectivity options including LoRaWAN, Ethernet, 4G LTE, and Wi-Fi HaLow, it's ideal for retail, office, and building management applications.
Integration Links
General configuration
Configuration is done via NFC using the Milesight ToolBox app.
For sensor configuration instructions, see 👉 General configuration.
LoRaWAN Network Options
For information about supported LoRaWAN network server platforms, see 👉LoRaWAN Network Options
LoRaWAN configuration
| Parameter | Value |
|---|---|
| Join type | OTAA |
| AppEUI/JoinEUI | 24E124C0002A0001 |
| AppKey | 5572404C696E6B4C6F52613230313823 |
Data Encoding & Decoding
| Type | GitHub Link |
|---|---|
| Decoder | View decoder |
| Encoder | View encoder |
| Codec | View codec |
Power supply
| Type | Value |
|---|---|
| Power | 802.3at PoE+ or 12V/2A |
Technical Specifications
| Parameter | Value |
|---|---|
| Wireless Transmission | |
| Technology | LoRaWAN®, Ethernet, 4G LTE, Wi-Fi HaLow |
| Antenna | Internal |
| Frequency | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Tx Power | 16 dBm (868MHz) / 20 dBm (915MHz) / 19 dBm (470MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA / ABP Class C |
| Detection | |
| Technology | ToF (Time-of-Flight) with AI |
| Detection Range | 0.5–3.5m (standard); 2–6.5m (high-ceiling) |
| Installation Height | ≤3.5m (standard); ≤6.5m (high-ceiling) |
| Field of View | 98° H × 80° V (standard); 60° H × 45° V (high-ceiling) |
| Distance Accuracy | ±3.5cm (standard); ±6.5cm (high-ceiling) |
| Accuracy | 99.8% |
| ToF Light Beam | 940nm (invisible infrared) |
| Features | |
| Counting Zones | Up to 4 custom zones |
| Analytics | Bi-directional counting, dwell time, heat maps, group counting |
| Advanced Features | Staff exclusion, shopping cart detection, adult/child differentiation |
| Local Storage | Up to 1 million data records |
| Multi-device Stitching | Up to 8 units |
| Physical Characteristics | |
| Power Supply | 802.3at PoE+ or 12V/2A DC |
| Power Consumption | Avg. 7–10W, max 15–24W |
| Operating Temp | -20°C ~ +50°C |
| Humidity | 0%–95% RH (non-condensing) |
| Ingress Protection | IP65 |
| Dimensions | 200 × 35 × 85 mm |
| Weight | 419 g (PoE version) |
| Material | ABS+PC |
| Approvals | CE, FCC, ISED, RoHS, GDPR certified |
