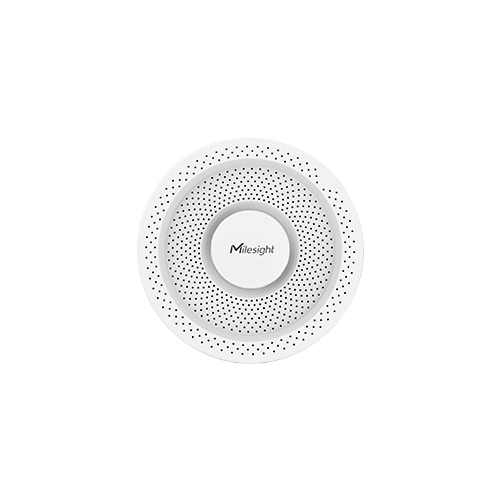

Milesight Sensor GS601
Milesight GS601 is a ceiling-mounted vape and smoke detector designed for smoke-free environments including schools, apartments, hotels, and stairwells. It uses laser scattering technology to detect e-cigarettes, traditional cigarettes, and marijuana with high accuracy, while also monitoring temperature, humidity, particulate matter (PM1.0/2.5/10), and TVOC. The sensor features anti-tamper protection, real-time alerts via buzzer (70 dB) and LED indicators, IP30 rating, and LoRaWAN Class C connectivity for comprehensive air quality monitoring and enforcement.
Integration Links
General configuration
Configuration is done via NFC using the Milesight ToolBox app.
For sensor configuration instructions, see 👉 General configuration.
LoRaWAN Network Options
For information about supported LoRaWAN network server platforms, see 👉LoRaWAN Network Options
LoRaWAN configuration
| Parameter | Value |
|---|---|
| Work mode | Class C |
| Join type | OTAA |
| AppEUI/JoinEUI | 24E124C0002A0001 |
| AppKey | 5572404C696E6B4C6F52613230313823 |
Data Encoding & Decoding
| Type | GitHub Link |
|---|---|
| Decoder | View decoder |
| Encoder | View encoder |
| Codec | View codec |
Power supply
| Type | Value |
|---|---|
| Power | 5V/1A USB Type-C or PoE Splitter |
Technical Specifications
| Parameter | Value |
|---|---|
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Antenna | Internal |
| Frequency | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Tx Power | 16 dBm (868MHz) / 22 dBm (915MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA / ABP Class C |
| Vape/Smoke Detection | |
| Technology | Laser scattering |
| Detection Range | 0-100 (scale) |
| Accuracy | ±10 |
| Detection Capability | E-cigarettes, traditional cigarettes, marijuana |
| Environmental Sensors | |
| Temperature | -20°C ~ +60°C, Accuracy ±0.2°C |
| Humidity | 0% ~ 100% RH, Accuracy ±2% |
| Particulate Matter | PM1.0, PM2.5, PM10 (0-1000 μg/m³) |
| TVOC | 0-2000 μg/m³ |
| Alerts & Indicators | |
| Buzzer | Yes, 70 dB |
| LED Indicators | Visual status alerts |
| Tamper Detection | Vibration sensor |
| Flame Alarm | Temperature-based (20-60°C monitoring) |
| Features | |
| Configuration | NFC / Downlink |
| Advanced Features | Anti-tamper, adjustable buzzer, FUOTA |
| Water/Gas Resistance | Resilient against false alarms |
| Physical Characteristics | |
| Power Supply | 5V/1A USB Type-C or PoE Splitter |
| Operating Temp | -5°C ~ +45°C |
| Humidity | 0%–95% RH (non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | Ø128 × 40 mm |
| Weight | 178.6 g |
| Material | ABS+PC |
| Installation | Ceiling mount (3M adhesive, 2.7-3m height) |
| Approvals | CE, FCC, RoHS |
