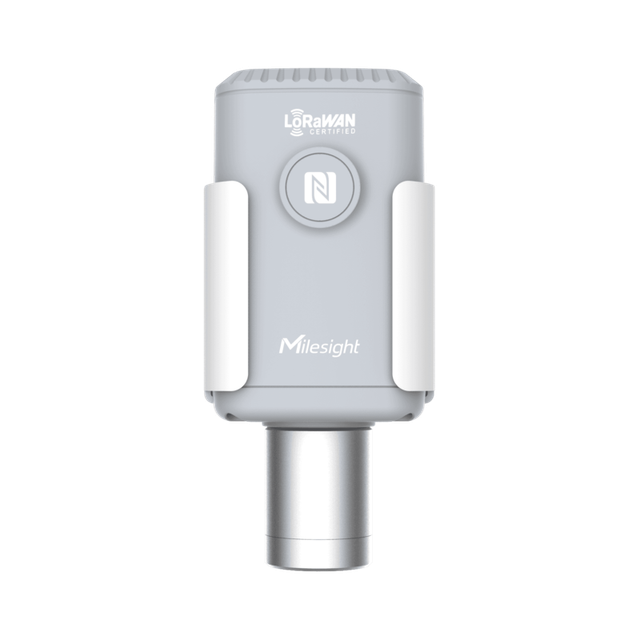

Milesight Sensor EM500-CO2
Milesight EM500-CO2 is a 4-in-1 outdoor environmental monitoring sensor designed for measuring CO₂ levels alongside environmental conditions in harsh settings. It features NDIR CO₂ sensor with 400-5,000 ppm range, integrated temperature, humidity, and barometric pressure sensors, IP65-rated enclosure, and 10-year battery life. With LoRaWAN connectivity and NFC configuration, it's ideal for greenhouse monitoring, building ventilation, fruit storage, and forest fire detection.
The EM500 series includes multiple variants: EM500-SWL (Water Level), EM500-PP (Pipe Pressure), EM500-LGT (Light), EM500-PT100 (Temperature), EM500-CO2 (CO₂), EM500-SMTC (Soil Moisture), and more. This documentation focuses on the EM500-CO2 model.
Integration Links
| Resource | Link |
|---|---|
| HARDWARIO Store | Not yet available |
| Official page | https://www.milesight.com/iot/product/lorawan-sensor/em500-co2 |
| User Guide | https://resource.milesight.com/milesight/iot/document/em500-series-user-guide-en.pdf |
| Datasheet | https://resource.milesight.com/milesight/iot/document/em500-co2-datasheet-en.pdf |
General configuration
Configuration is done via NFC using the Milesight ToolBox app.
For sensor configuration instructions, see 👉 General configuration.
LoRaWAN Network Options
For information about supported LoRaWAN network server platforms, see 👉LoRaWAN Network Options
LoRaWAN configuration
| Parameter | Value |
|---|---|
| LoRaWAN version | 1.0.3 |
| Work mode | Class A |
| Join type | OTAA |
| AppEUI/JoinEUI | 24E124C0002A0001 |
| AppKey | 5572404C696E6B4C6F52613230313823 |
Data Encoding & Decoding
| Type | GitHub Link |
|---|---|
| Decoder | View decoder |
| Encoder | View encoder |
| Codec | View codec |
Power supply
| Type | Value |
|---|---|
| Power | ER34615 Li-SOCL2 (19000 mAh) |
Technical Specifications
| Parameter | Value |
|---|---|
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Antenna | Internal |
| Frequency | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Tx Power | 16–20 dBm (varies by frequency) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA / ABP Class A |
| Range | Up to 2 km (urban); 15 km (rural) |
| CO₂ Measurement | |
| Sensor Type | NDIR (Non-Dispersive Infrared) |
| Measurement Range | 400–5,000 ppm |
| Accuracy | ± (30 ppm + 3% of reading) (0–50°C, 0–85% RH) |
| Resolution | 1 ppm |
| Temperature Sensor | |
| Range | -30°C ~ +70°C |
| Accuracy | ±0.3°C (0–70°C); ±0.6°C (-30–0°C) |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Range | 0–100% RH |
| Accuracy | ±3% (10–90% RH); ±5% (outside range) |
| Resolution | 0.5% RH |
| Barometric Pressure | |
| Range | 300–1,100 hPa |
| Accuracy | ±1 hPa |
| Resolution | 0.1 hPa |
| Features | |
| Data Storage | 1,000 entries |
| Configuration | NFC / Downlink |
| Advanced Features | Threshold alarms, data retransmission, calibration |
| Physical Characteristics | |
| Power Supply | 1 × ER34615 (19000 mAh) |
| Battery Life | ~10 years (10-min interval, 25°C) |
| Operating Temp | -30°C ~ +70°C |
| Humidity | 0%–95% RH (non-condensing) |
| Ingress Protection | IP65 |
| Dimensions | 147.9 × 71 × 69.5 mm |
| Weight | 434.7 g (with battery and bracket) |
| Material | ABS+PC, Grey |
| Installation | Pole, wall, or DIN rail mounting |
| Approvals | CE, FCC, LoRaWAN Certified, ISED, ICASA, Telec, RoHS |
