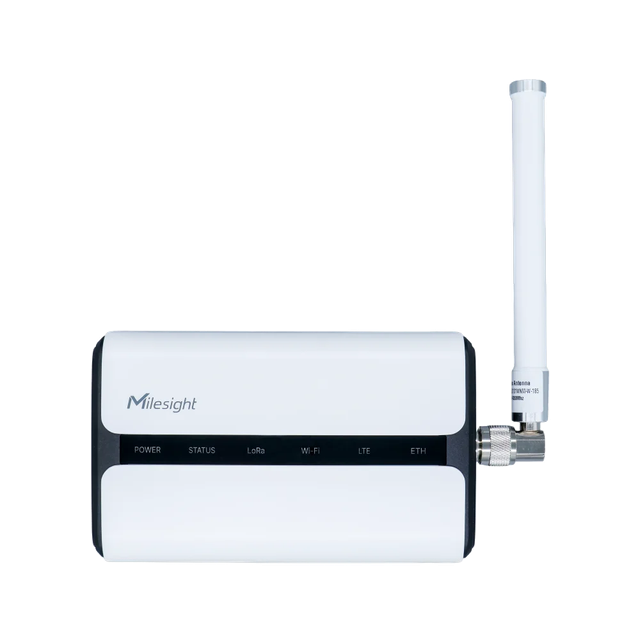

Milesight Gateway UG65-868M
Milesight UG65 is a semi-industrial LoRaWAN® gateway powered by the SX1302 chipset with 8-channel support. It allows Ethernet/PoE deployment, offers high node capacity, and is suitable for smart building and industrial applications.
Power supply / connectivity
| Type | Value |
|---|---|
| Power | PoE or power adapter |
| Wi-Fi | Default SSID: Gateway_**** / Password: iotpassword |
| Access URL | http://192.168.1.1 |
| Login | admin / password |
Network configuration
- Connect to the gateway via Wi-Fi and log in to the web interface.
- The default configuration provides one destination which cannot be modified.
- Disable the default destination and create a new one.
Packet forwarding (CUPS)
To connect the gateway to The Things Industries using CUPS:
| Setting | Value |
|---|---|
| Enable | True |
| Type | The Things Industries |
| Protocol | CUPS |
| Server address | hardwario-com.eu1.cloud.thethings.industries |
| CA File (*.pem) | Download from TTI root certificates |
| Client key file | Upload the cups.key generated in your TTN/TTI account |
After uploading the CUPS key, the gateway will automatically fetch the correct LNS configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| Hardware System | |
| CPU | Quad-core 1.5 GHz ARM Cortex-A53 |
| Memory | 512 MB DDR4 |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Channels | 8 (half/full duplex) |
| Antennas | 2 × Internal + 1 × N-Female external |
| Frequency | CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Tx Power | 27 dBm |
| Sensitivity | -140 dBm @292bps |
| Protocols | V1.0 / V1.0.2 Class A/B/C |
| Supported Devices | ~2000 (10 min uplink) |
| Features | Packet filter, Noise analyzer, Retransmission, FUOTA, Multicast |
| Interfaces | |
| Ethernet | 1 × RJ45 (10/100/1000 Mbps, PoE) |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Cellular (opt.) | 4G LTE |
| USB | 1 × USB-C (power/console) |
| Reset Button | Yes |
| LEDs | Power, Status, LoRa, Wi-Fi, LTE, ETH |
| Network | |
| Protocols | MQTT, HTTP(S), Modbus TCP, BACnet/IP, VPN (IPSec, OpenVPN, WireGuard…) |
| Management | Web, CLI, SNMP, API, DeviceHub |
| Reliability | WAN failover |
| Power | |
| Supply | DC 9–24 V / PoE / 5V USB-C |
| Consumption | 2.9 W typ., 4.2 W max |
| Physical Characteristics | |
| Dimensions | 180 × 110 × 55.5 mm |
| Weight | 548 g |
| Housing | PC+ABS, White/Black |
| Ingress Protection | IP65 |
| Installation | Desktop, Wall, Pole |
| Operating Temp | -40°C ~ +70°C |
| Humidity | 0–95% RH (non-cond.) |
| Approvals | CE, FCC, Telec, JATE, RCM, RoHS |
