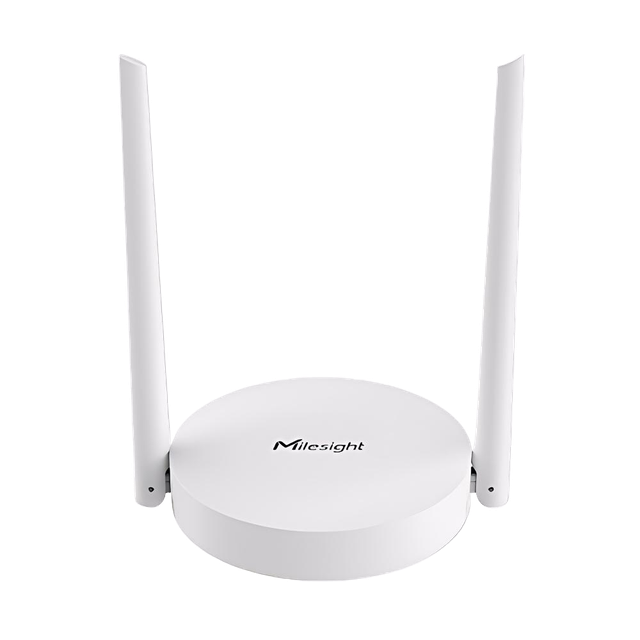

Milesight Gateway UG63-868M
Milesight UG63 is a compact LoRaWAN® gateway designed for small-scale deployments with 8-channel support and up to 2000 end-nodes. It provides Ethernet and 4G LTE backhaul, easy Wi-Fi configuration, and ensures cost-effective network coverage.
Power supply / connectivity
| Type | Value |
|---|---|
| Power | USB-C |
| Wi-Fi | Connect to the SSID shown on the device label |
| Access URL | http://192.168.1.1 |
| Login | admin / password |
Network configuration
- By default, the gateway provides a Wi-Fi network for initial setup.
- Log in via browser at
192.168.1.1(admin / password). - In WAN settings, select either DHCP client (automatic IP) or Static IP (manual configuration).
- If DHCP is used, the assigned IP address can be found under Status → Ethernet.
- It is recommended to disable WLAN after setup: Settings → WLAN → Enable = false.
Packet forwarding
The gateway supports several options for packet forwarding:
- Embedded NS – simple built-in network server.
- Chirpstack v4 – connect to a local Chirpstack server.
- The Things Stack – connect to The Things Industries cloud service.
LNS & CUPS
For secure connection to The Things Industries:
- LNS URI:
wss://hardwario-com.eu1.cloud.thethings.industries:8887 - CUPS URI:
https://hardwario-com.eu1.cloud.thethings.industries:443 - Download the CA file from the TTI root certificates page.
- Upload the client key files (
tc.key,cups.key) generated in your TTI account.
Technical Specifications
| Parameter | Value |
|---|---|
| Hardware System | |
| CPU | Dual-core 240 MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB |
| LoRaWAN® | |
| Channels | 8 (half-duplex) |
| Antenna | 1 × External |
| Frequency | CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Tx Power | Max. 27 dBm |
| Sensitivity | -140 dBm @292bps |
| Protocol | V1.0.3 Class A/C |
| Supported Devices | ~2000 |
| Advanced Features | Packet filter, Retransmission |
| Interfaces | |
| Ethernet | 1 × RJ45 (10/100 Mbps, Auto) |
| Cellular (opt.) | 4G LTE Cat1/GSM |
| Wi-Fi | 802.11 b/g/n (2.4 GHz, AP mode) |
| USB | 1 × USB-C (power/console) |
| Buttons | Reset |
| LED | System, LTE |
| Network | HTTP(S), MQTT, VPN, OpenVPN client |
| Config/Update | Web, API, DeviceHub |
| Power | |
| Supply | 5V/2A (USB-C) / 5–12V DC / PoE splitter |
| Consumption | 1.3 W typ., 3.1 W max |
| Physical Characteristics | |
| Dimensions | Ø115 × 21 mm (excl. antenna) |
| Weight | 140 g (non-cellular), 158 g (cellular) |
| Housing | PC+ABS, White |
| Ingress Protection | IP30 |
| Installation | Desktop / Wall / Ceiling |
| Operating Temp | -20°C ~ +50°C |
| Humidity | 0–95% RH (non-cond.) |
| Approvals | CE, FCC |
Integration resources
| Resource | Link |
|---|---|
| Official page | https://www.milesight.com/iot/product/lorawan-gateway/ug63 |
