EMBER Introduction

EMBER platform provides transmission and processing of measured sensor values and control of actuators in industrial sites.

We utilize LoRaWAN for industrial site LPWAN, LTE for connectivity to cloud services, cloud components for LoRaWAN server, and Node-RED for REST integrations.

It is composed of those parts:

  • The industrial sites where EMBER IoT Hotspot and CHESTER are located

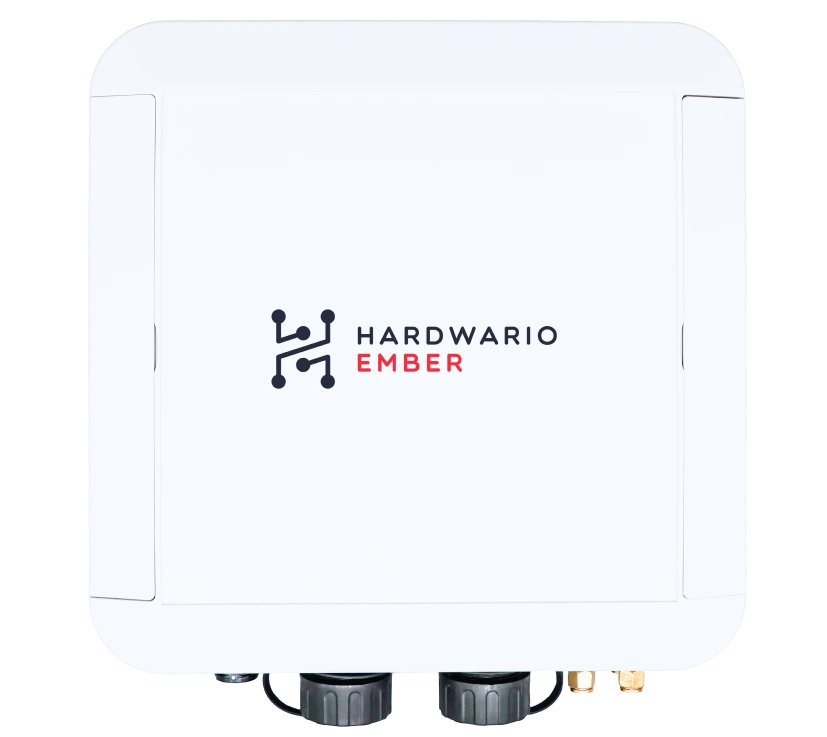

    • EMBER Hotspot - Outdoor LoRaWAN gateway

    • CHESTER - Outdoor sensing and control device with LoRaWAN modem

  • LTE transport from Onomondo

  • EMBER Cloud service with those services

    • ChirpStack - LoRaWAN Network Server

    • Node-RED - Low-code programming for event-driven integrations

Data visualization and processing can be done using specialized cloud services or on-premise applications.

System Concept​

There is at least one site for EMBER service, but you can use several cloud services and several sites.

The minimal site configuration is:

  • One LoRaWAN device (such as CHESTER)

  • One LoRaWAN gateway (EMBER Hotspot)

  • One instance of a LoRaWAN server (e.g., EMBER Cloud operated by HARDWARIO)

Every EMBER Hotspot can serve more than 100 LoRaWAN devices if these are within the radio coverage.

tip

The redundant site configuration comes with a minimum of two EMBER Hotspot units (both within the radio coverage of the devices).

The supported LoRaWAN protocol is based on the LoRaWAN specification.

The supported LTE connectivity is based on 3GPP specifications.

The EMBER Cloud service operates on the virtual private servers of the Digital Ocean cloud computing service.

The EMBER Cloud is interconnected with all EMBER Hotspot units by two independent VPN tunnels (Virtual Private Networks) over the LTE internet connectivity:

  • OpenVPN TCP-based VPN for LoRaWAN traffic

  • WireGuard UDP-based VPN for remote management of EMBER Hotspot
