STICKER Input Wiring

DIP Switch Legend​

  • |🟥←| ON — DIP switch in the ON position (red)
  • |→⬛| OFF — DIP switch in the OFF position (black)

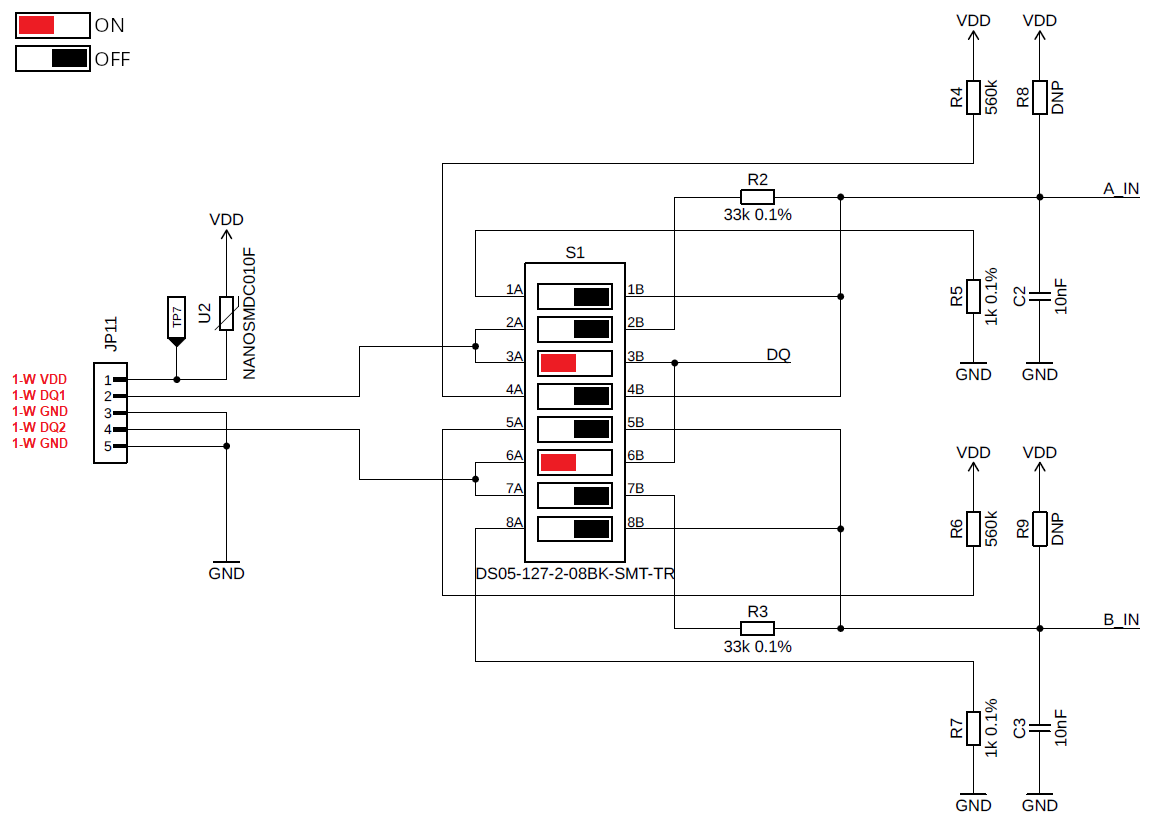

1-Wire Input​

Wiring for 1-WIRE (Dallas, ...):

  • DIP switches enable the data lines (DQ1/DQ2).

STICKER 1-Wire

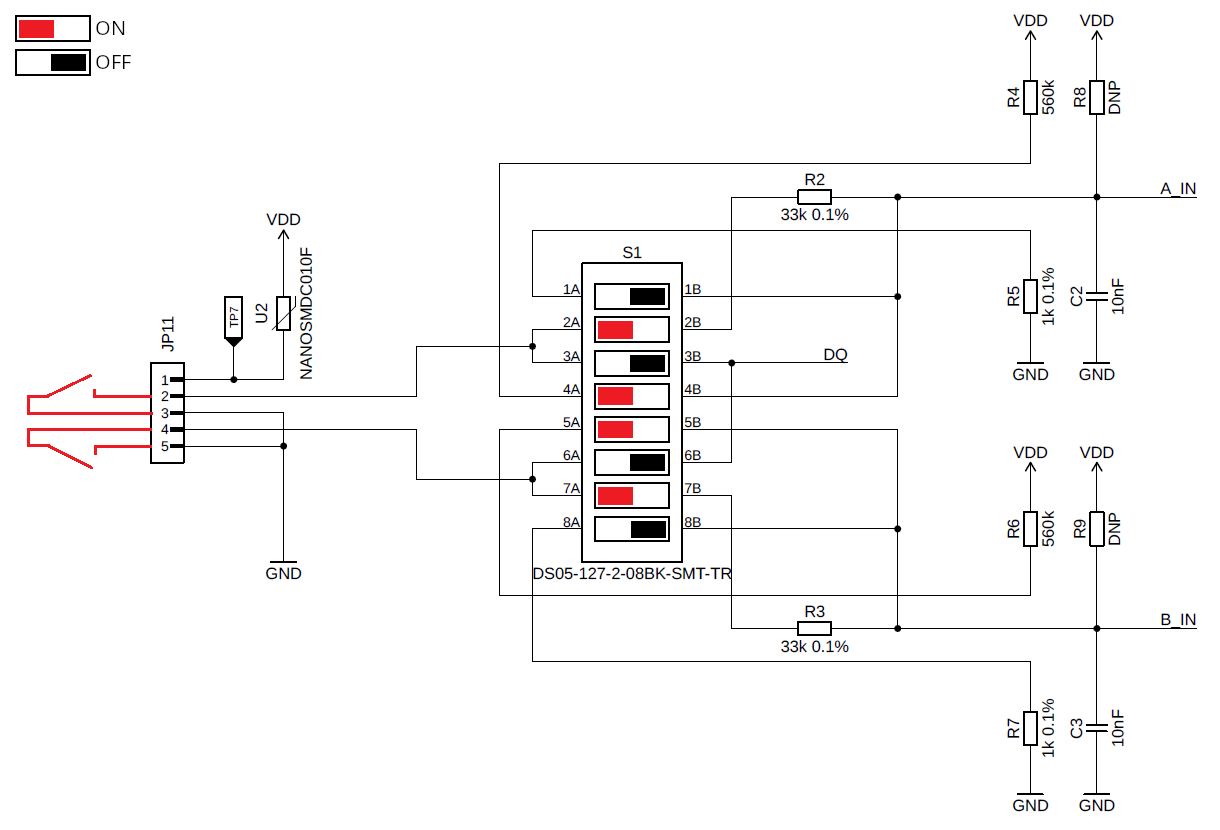

Dry Contact Input​

Wiring for DRY CONTACT:

  • 560 kΩ pull-up and grounded through 33 kΩ.

STICKER Dry Contact

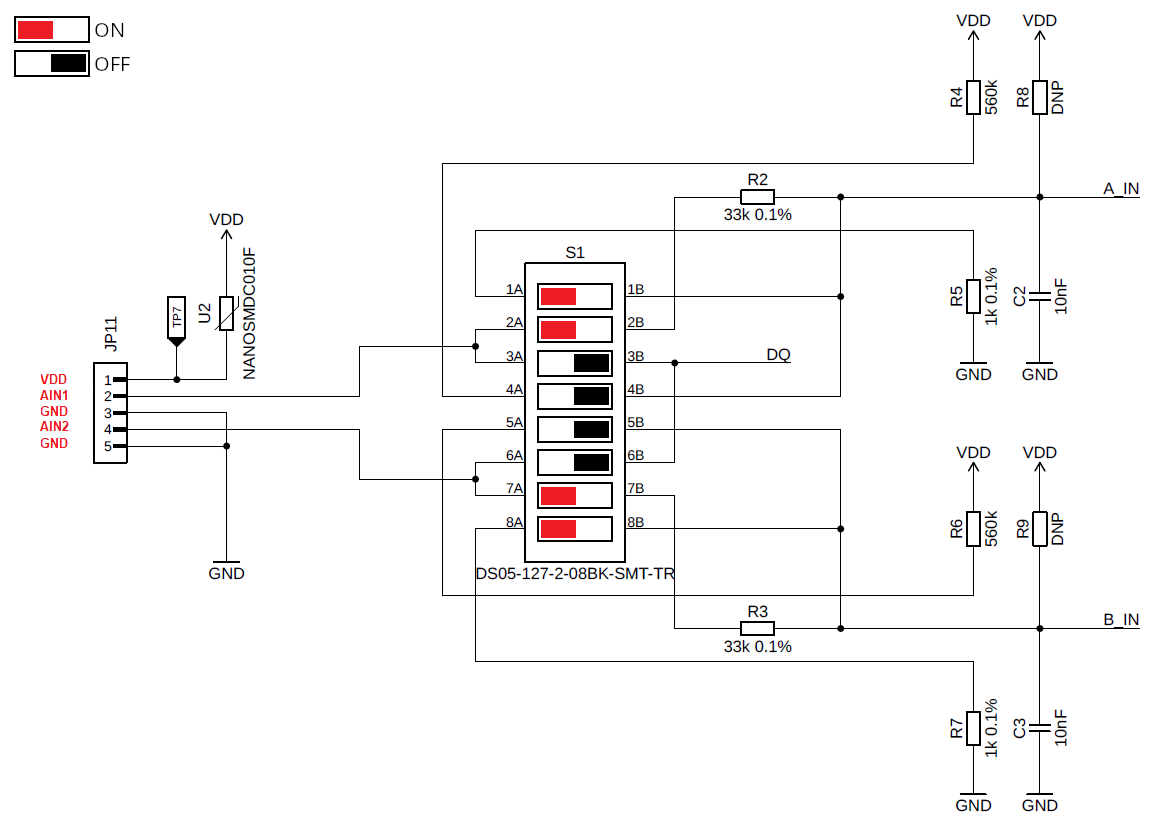

Analog Input (0–24 V)​

Analog input 0–24 V:

  • Divider 1 kΩ / 33 kΩ.

STICKER Analog Input

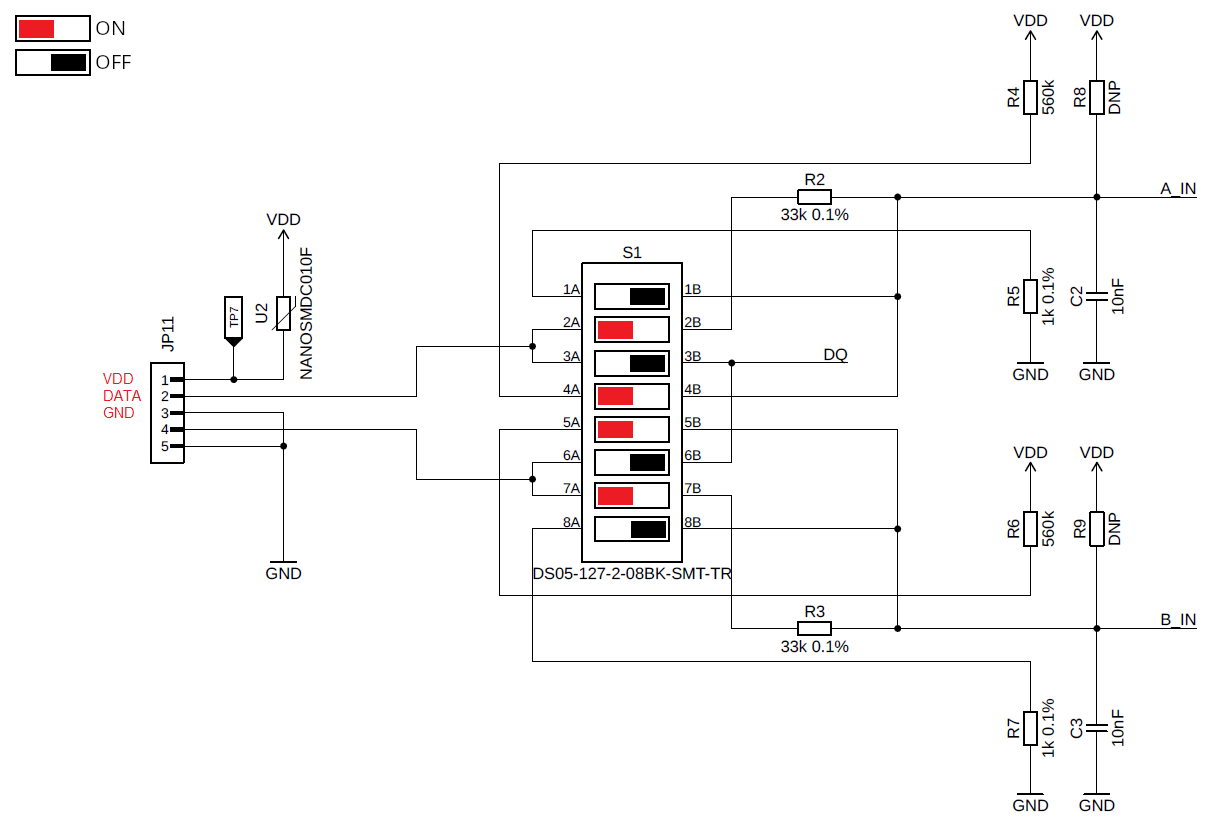

SO Sensor​

STICKER
